Bandsawing Machines

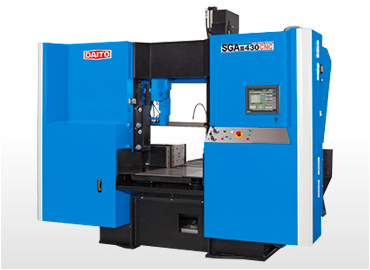

SGAⅢ430CNC

画像

Easy-to-use as well as Speed Cut

Increased frame rigidity with precise infeed control improves cutting efficiency.
The usability is greatly improved by a new interface.

product name

SGAⅢ430CNC

product photo 画像
Max. Capacity(W×H) 画像 430 mm
画像 430 mm
画像 -
画像 -
Overall Dimentions
(W×D×H)
2845×2166×2411 mm
Machine Weight 4350 kg

FEATURE

   SGAⅢ430CNC



画像

QUEST OF SPEED CUTS

The newest SGAⅢ430CNC version has the same construction of the larger models. The cutting speed is improved by 20 percent with the rigid saw frame and new servo motors.
*Optional Carbide saw blade cutting available.

画像

EASY PROGRAM ENTRY for EVERYBODY

The data entry is especially easy.
Select shape and material. The size is measured by the machine automatically.
The cutting conditions can be customized in accordance with customer’s needs; can differentiate cutting control freely.
※Profiles such as pipes needs thickness entry.

画像

■VISUALIZED CUTTING STATUS

The saw blade position, crooked cut deviation of the cross-section is monitored real time.
The visual interface shows everything at a glance.

画像

■TOOL MANAGEMENT

The records of each saw blade such as cumulative cutting time/area is shown for tool management.

画像

■OUTPUT of JOURNALS

The cutting records such as cumulative run time and cut time/area are output as daily/monthly journal data for your review.

  IMPROVED RIGIDITY of SAW FRAME



Improved Rigidity of Saw Frame. Especially the improved rigid guide hands enabled more speedy and silent cuts.

  FINE - TUNED FEED CONTROL



The new servo motor has more delicate response;The feed control is optimized further for both speed and tool life.

   AUTOMATIC SETUP



The work infeed setups such as saw frame raise and vises open; the work outfeed setup such as a remnant retraction --- are available just by pushing a button.
The troublesome setup sequence is automated. All you need is just pushing a button.







画像

SENSOR/STOPPER INITIAL INDEXING

The initial indexing to start cycle cut is selectable; both quick laser sensor method and accurate bumper-stopper method available.

画像

BACK GAUGE FUNCTION

The index vise can be also used as a back gauge for convenient accurate single cutting operations.

画像

SUB OP. BUTTONS FOR WORK INFEED

Sub Operation Buttons are equipped for quick operation such as vise clamp or frame move.

画像

INDEXING TABLE WITH ROLLERS

The material is smoothly fed on the index roller table that is designed to withstand the heaviest of material.

画像

HYDRAULIC INSERT TIPS

The guide insert tips are hydraulically clamped to the saw blade with the proper pressure to ensure an accurate and square cutting.

画像

BLADE DEVIATION DETECTOR

This detector monitors the blade for any minor deviation during cutting and halts the machine if out of tolerance.

画像

LINKED SAW GUIDE

The movable saw guide is linked with the movable vise jaw position to be as close to the work piece as possible. This ensures optimal cutting conditions.

画像

FORWARD-REVERSE TWIN BRUSHES

The twin saw brushes run mutually opposite way to wipe out saw chips thoroughly for accurate cuts and longer blade life.

画像

SPLIT VISE

The main vise is split to be able to clamp even the shortest of pieces securely on both sides of the saw blade.

画像

SHIFTING INDEX SADDLE

When indexing, the index saddle slightly shifts material aside to avoid scratching the surface by the vise, which is good for stainless /cold-finished steel bars.

OPTION

画像
VISE PRESSURE REGULATOR

The regulator adjusts the vise pressure for thin wall material.


画像
ROLLER TABLE

2m length, 7 rollers.

画像
EXTRA HEAVY DUTY ROLLER TABLE

2m length, 8 rollers.
