Coping Machines

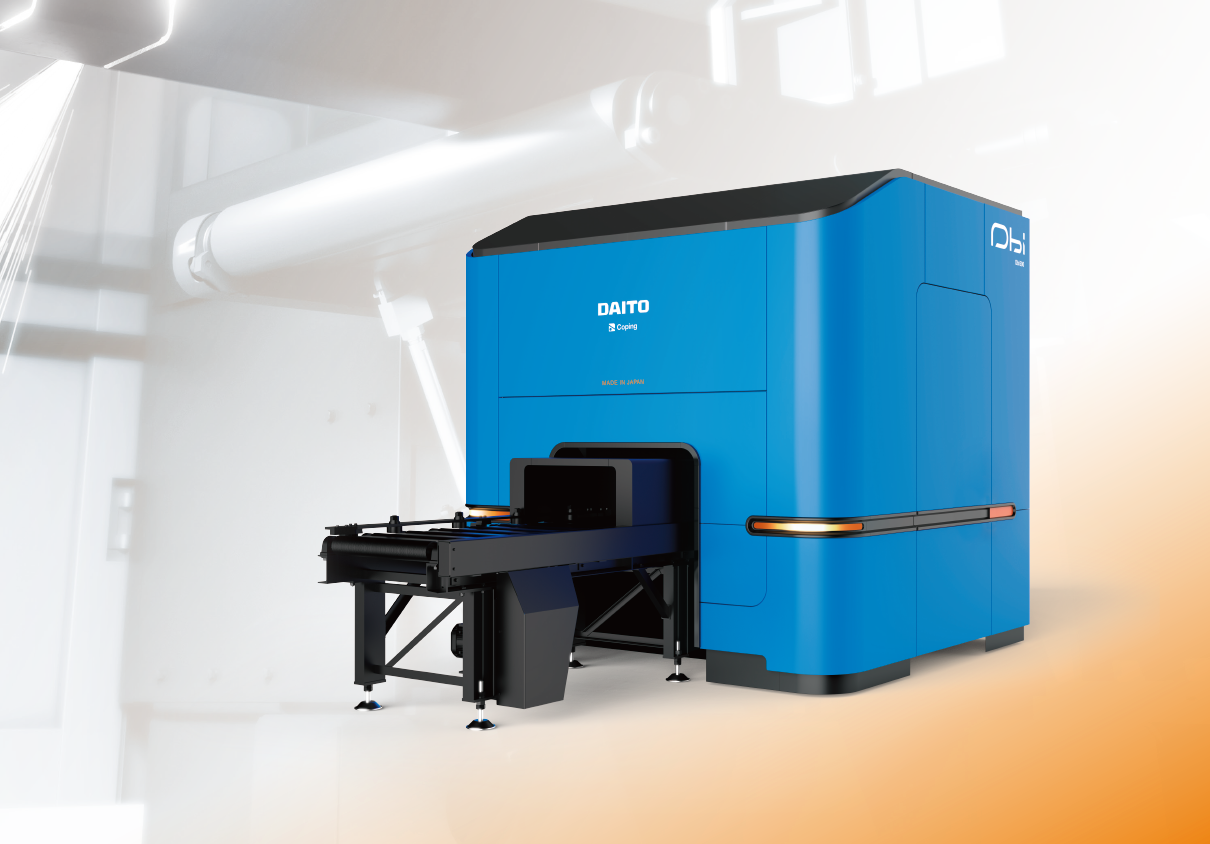

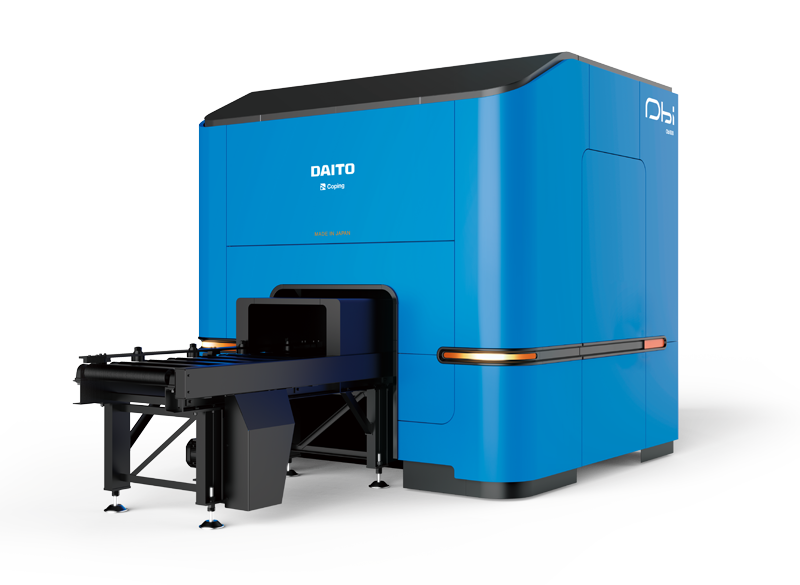

The Obi500 is a robotic system that uses a 6-axis articulated robot equipped with a plasma torch to automatically perform 3D machining (coping).
By automating processes such as notching and edge beveling of small structural steel sections, which previously relied on manual labor, it significantly reduces the workload and ensures consistent machining quality.
| Product Name |
Obi500 |
|
|---|---|---|
| Max. Capacity(W×H) |  |
- |
 |
- | |
 |
500×250mm | |
 |
- | |
| Overall Dimentions(W×D×H) |
2695×2400×2625 mm |
|
| Machine Weight | 4,000kg | |

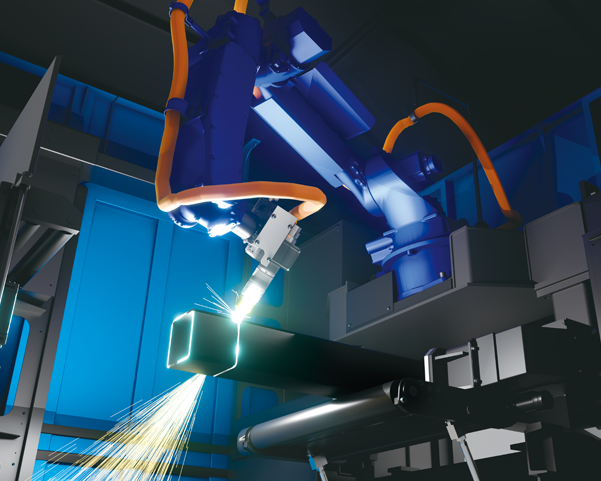

The Obi500 is a robotic system that uses a 6-axis articulated robot equipped with
a plasma torch to automatically perform 3D machining (coping).
By automating processes such as notching and edge beveling of small structural
steel sections, which previously relied on manual labor, it significantly reduces the
workload and ensures consistent machining quality.
Advanced cutting control utilizing the properties of plasma enables smooth,
seamless cut surfaces, allowing anyone to perform uniform, high-quality
machining regardless of their skill level.

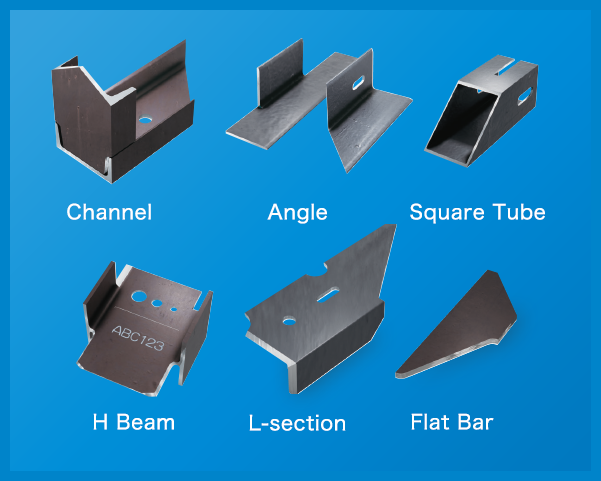

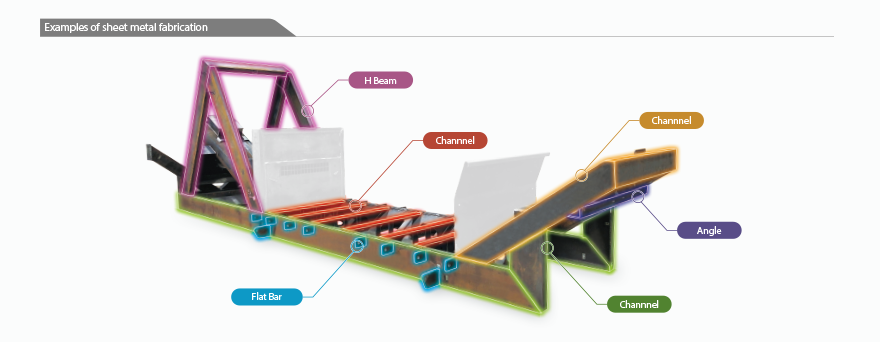

🔷Channel 🔷Angle 🔷Square Tube 🔷H-Beam 🔷L-Section 🔷Flat Bar
Obi500 supports the balance between efficiency and quality in manufacturingenvironments,
powerfully assisting in the realization of creative and valuable work.

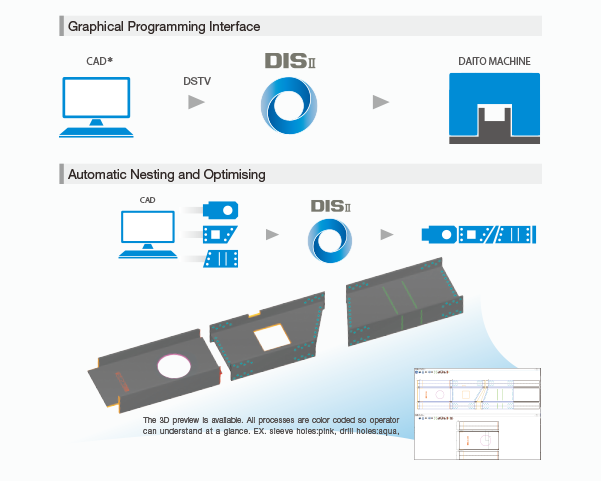

Import CAD Data
By converting CAD data into machining data, teaching-less robot
operation is achieved, eliminating the need for traditional robot teaching andprogramming, thus reducing the burden on operators.
This allows human resources to shift to more advanced and value-added tasks,contributing to effective labor savings.
🔷Contact us for compatible CAD software.
Automatic Operation
To make the processing steps
in can manufacturing more efficient and smoother ――

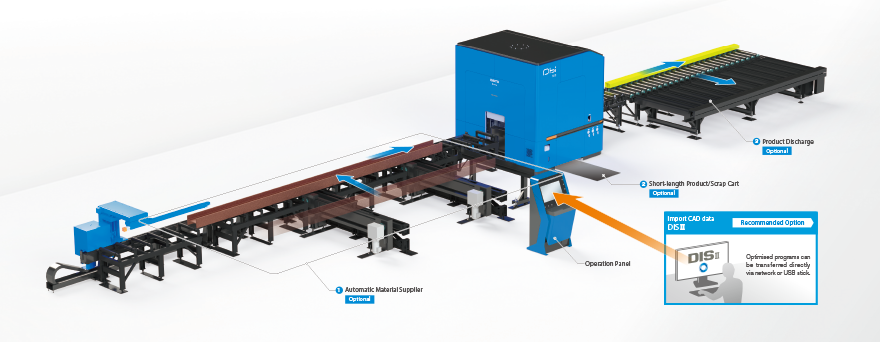

By combining the options shown in the diagram below with the Obi500,you can automate the feeding of materials from the stockyard to the lineand the dispensing of finished products.
Furthermore, using DISⅡ, you can convert machining programsfrom CAD data and send machining programs created in advance at the office,resulting in increased productivity and reduced labor costs.
🔷Please contact us for more details.

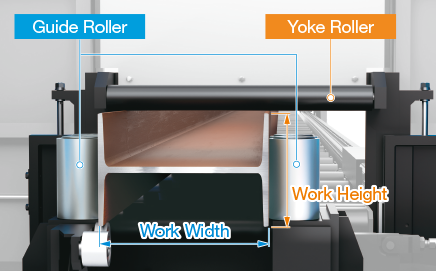

WIDTH / HEIGHT MEASUREMENT
When materials are brought in, they are clamped using guide rollers and yoke rollers.
At the same time, the material size is measured and checked to ensure it matches the processing program.

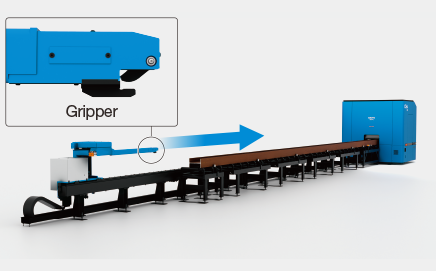

CARRIAGE SYSTEM
A carriage system is used for material feeding, enabling accurate feeding and positioning even for long materials.
Furthermore, a sensor built into the gripper detects material gripping misalignment, preventing processing errors. The carriage can be positioned on either the left or right side of the conveyor (please specify when ordering).

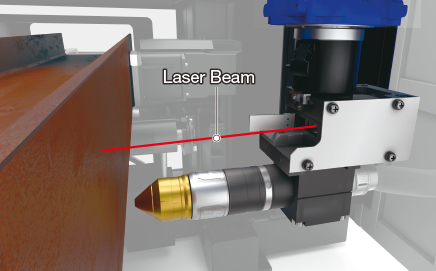

MATERIAL DETECTION USING LASER SENSORS
The positional deviation and actual dimensions of the material are accurately measured using a laser sensor and reflected in the processing.

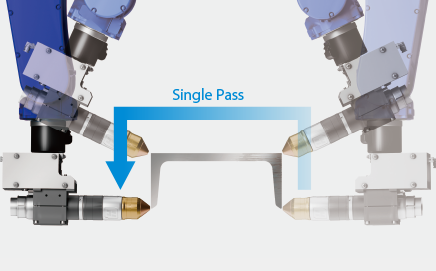

A SMOOTH AND UNIFORM CUT SURFACE
Even at corners where plate thickness changes, it achieves a smooth and uniform cut surface.
Angles and channels can be efficiently cut in a single pass, resulting in a beautiful, step-free cut surface, while also contributing to reduced processing time and extended consumable lifespan.

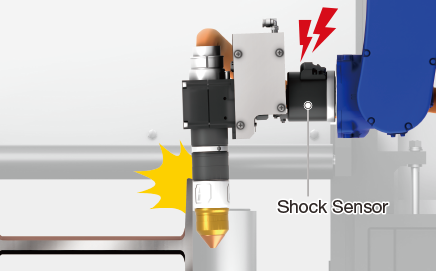

SHOCK SENSOR
In the unlikely event that the plasma torch interferes with the material, the shock sensor will react and immediately shut down the torch, preventing damage.

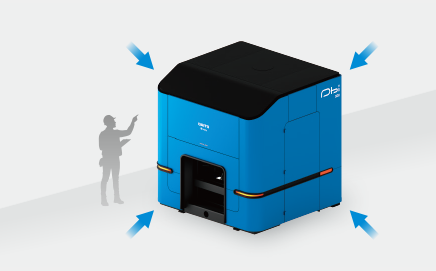

COMPACT AND SECURE FULL COVER
The machine itself features an environmentally conscious, fully enclosed structure. This prevents the robot from being exposed, protecting it from sparks and dust, and ensuring a safe and comfortable working environment. Furthermore, the control panel is located separately, allowing for a compact overall design.
＊The customer is responsible for arranging the dust collector and ductwork.
DISⅡ converts CAD data to machining data without
Mater ials are supplied by chained suppliers and lift pushers.
This box receives short products and scrap that cannot be fed through the machine. When collecting them, it is pulled out of the machine.
＊Construction of a pit of 300mm or more is recommended.
The products are diverted to the product yard.
Optimised programs can be transferred directly via network or USB stick.
From each machine to total automation, contact us freely.
