Bandsawing Machines
DAITO GT series includes a Computerised Digital Control (CNC) with a
full library of structural profile cutting data. This enables precise cutting
control of every size and shape of workpiece enabling high productivity,
high speed cutting and extremely long blade life.
| product |
GT1000 |
GT1300 |
|
|---|---|---|---|

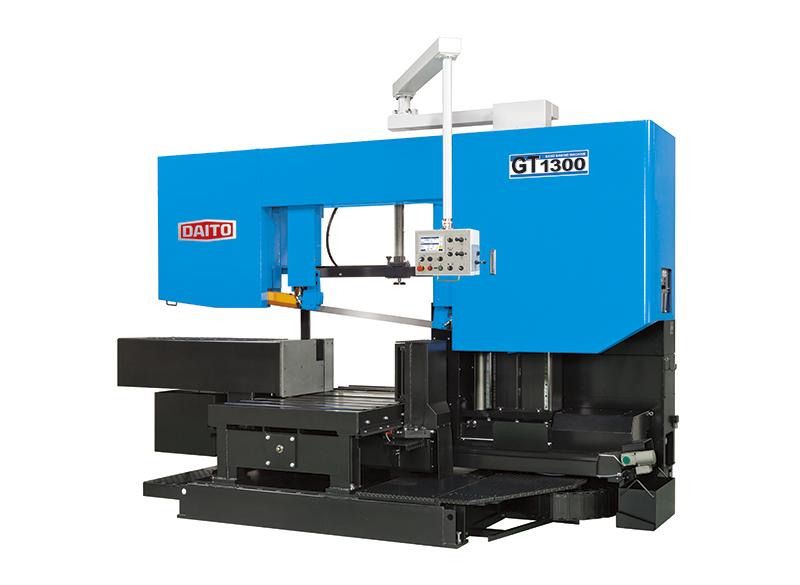

| product photo |  |
 |
|
| Max. Capacity(W×H) |  |
800 mm | 800 mm |
 |
800 mm | 800 mm | |
 |
1025×750 mm | 1325×700 mm | |
| Overall Dimentions (W×D×H) |
4359×2824×3239 mm | 4963×3024×3334 mm | |
| Machine Weight | 6940 kg | 7760 kg | |
DAITO GT series includes a Computerised Digital Control (CNC) with a full library of structural profile cutting data. This enables precise cutting control of every size and shape of workpiece enabling high productivity, high speed cutting and extremely long blade life.
The CNC control with profile memory helps improve blade life and overall speed.
LOWER CUTTING NOISE
The vibration damper roller reduces cutting noise; increases blade life.
CUTTING OPTIMIZATION
The blade speed and the feed rate are controlled to optimize cutting conditions depending on the work size and material.
PINCHING ESCAPE
Saw blade pinching due to beam inner stress is eliminated by DAITO’s unique proactive step-feed method.
EASY MITER CUT
Miter cutting up to 45 degrees is automatically accomplished depending on the entered data. Maximum of 24 angles stored in the computer.
SIMPLE DATA ENTRY
The program/operation entry is via a touch panel on the machine.
The laser beam helps to position workpiece when a markings are made on the left flange.
The powered roller is linked with a roller table; lifts up workpiece by hydraulics and feed it to the machine driven by the motor.
The workpiece is pushed against the vertical rollers for precise alignment.
The traverse carts lift up and traverse workpiece to the conveyor lines.
