Bandsawing Machines
DAITO’s SGA530Ⅲ saw is targeted to cut alloy steels such as stainless steel, dice steel, nickel alloy and titanium alloy accurately with high speed.
The machine is rated as the top in terms of usability as well as speed.
product name | SGA530Ⅲ | |
---|---|---|
product photo | ![]() |
|
Max. Capacity (W×H) | ![]() |
530 mm |
![]() |
530 mm | |
![]() |
530×530 mm | |
![]() |
ー | |
Overall Dimentions (W×D×H) | 3399×2133×2640 mm | |
Machine Weight | 6310 kg |
The newest SGA530Ⅲ version has the same construction of the larger models. The cutting speed is improved by 10 percent with the rigid saw frame and new servo motors.
*Optional Carbide saw blade cutting available.
The data entry is especially easy.
Select shape and material.
※ The size is measured by the machine automatically.
The cutting conditions can be customized in accordance with customer’s needs; can differentiate cutting control freely.
※Profiles such as pipes needs thickness entry.
■VISUALIZED CUTTING STATUS
The saw blade position, crooked cut deviation of the cross-section is monitored real time.
The visual interface shows everything at a glance.
■TOOL MANAGEMENT
The records of each saw blade such as cumulative cutting time/area is shown for tool management.
■OUTPUT of JOURNALS
The cutting records such as cumulative run time and cut time/area are output as daily/monthly journal data for your review.
Improved Rigidity of Saw Frame. Especially the improved rigid guide hands enabled more speedy and silent cuts.
The new servo motor has more delicate response;The feed control is optimized further for both speed and tool life.
The work infeed setups such as saw frame raise and vises open; the work outfeed setup such as a remnant retraction --- are available just by pushing a button.
The troublesome setup sequence is automated. All you need is just pushing a button.
SENSOR/STOPPER INITIAL INDEXING
The initial indexing to start cycle cut is selectable; both quick laser sensor method and accurate bumper-stopper method available.
BACK GAUGE FUNCTION
The index vise can be also used as a back gauge for convenient accurate single cutting operations.
SUB OP. BUTTONS FOR WORK INFEED
Sub Operation Buttons are equipped for quick operation such as vise clamp or frame move.
INDEXING TABLE WITH ROLLERS
The material is smoothly fed on the index roller table that is designed to withstand the heaviest of material.

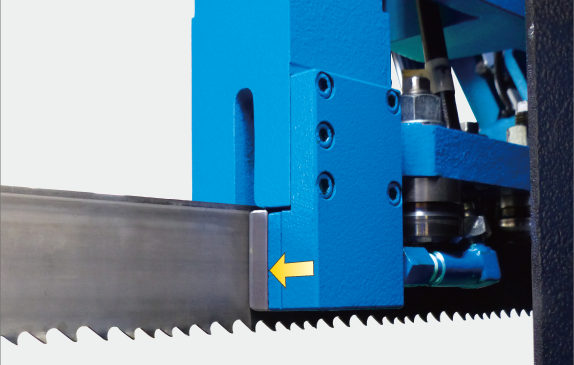

HYDRAULIC INSERT TIPS
The guide insert tips are hydraulically clamped to the saw blade with the proper pressure to ensure an accurate and square cutting.

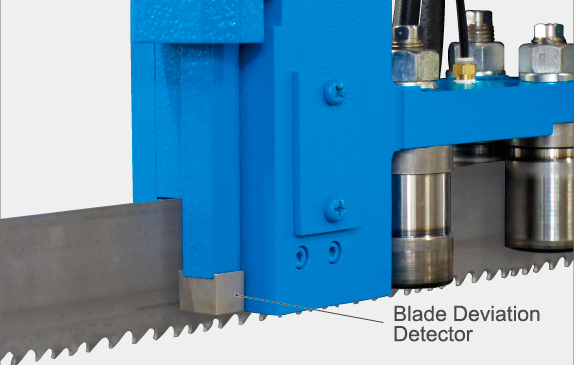

BLADE DEVIATION DETECTOR
This detector monitors the blade for any minor deviation during cutting and halts the machine if out of tolerance.
LINKED SAW GUIDE
The movable saw guide is linked with the movable vise jaw position to be as close to the work piece as possible. This ensures optimal cutting conditions.
FORWARD-REVERSE TWIN BRUSHES
The twin saw brushes run mutually opposite way to wipe out saw chips thoroughly for accurate cuts and longer blade life.
SPLIT VISE
The main vise is split to be able to clamp even the shortest of pieces securely on both sides of the saw blade.
SHIFTING INDEX SADDLE
When indexing, the index saddle slightly shifts material aside to avoid scratching the surface by the vise, which is good for stainless /cold-finished steel bars.
The regulator adjusts the vise pressure for thin wall material.
While the machine is running, the winker lights up.
2m length, 7 rollers.
2m length, 8 rollers.
