Bandsawing Machines
The automatic CNC band saw with a miter cut feature. The full auto line system capable machine.
| Product Name | GTAⅡ8010CNC | GTAⅡ1010CNC | GTA6013CNC | |
|---|---|---|---|---|
| Product Photo |  |
 |
 |
|
| Max. Capacity(W×H) |  |
- | - | - |
 |
800 mm | 1000 mm | 600 mm | |
 |
1025 × 750 mm |
1000 × 1000 mm | 1300 × 500 mm | |
 |
- | - | - | |
| Overall Dimentions(W×D×H) | 4683 × 6014 × 3089 mm | 5020 × 5538 × 3750 mm | 5225 × 6124 × 3084 mm | |
| Machine Weight | Total 11,620 kg | 14,000 kg |
14,000 kg |
|
GTAⅡ8010CNC is the fully automatic heavy duty production model developed from best-selling GT series; the core machine for DAITO Automatic Structural steel Processing line - DASP.
Preset a program and just leave it to the machine.For mitering, both gradient and degree available.
Optimization of the jobs is accomplished by the computerization of blade speed, feed rate, and tool life management.
QUICK MEASUREMENT ON ONE FEED
Power pinch rollers quickly position the workpiece. This precise method insures a tolerance of ±1mm for product length up to 10m.
TWIN MEASURING DISKS
The twin disks assure error-free measurement. On measurement difference, the machine alerts to stop malfunctions.
FRONT SHUTTLE VISE
Workpiece remnants and short pieces can be fed off the rollers with the indexable front shuttle vise.
ROTATING RUST BRUSH
The cup brush behind the measuring disks wipes out rust and dirt on workpiece for accurate measurement.
WORKPIECE VERIFICATION
Work width is measured when clamped. Work height is measured when the laser beam under the blade contacts the workpiece enabling easy operation.
WORKPIECE FRONT END DETECTION
The front end of workpiece (illustrated H beam) is detected by sensors for positioning; no need for manual measurement.
SAW GUIDE LINKED WITH VISE
Being linked with the vise, the left side saw guide is always close to the workpiece and the insert tips are hydraulically loaded for the best blade conditions.
WIDE CUTTING CAPACITY
From 100 to 1,025mm wide workpiece can be clamped and cut.
The CNC control with profile memory helps improve blade life and overall speed.

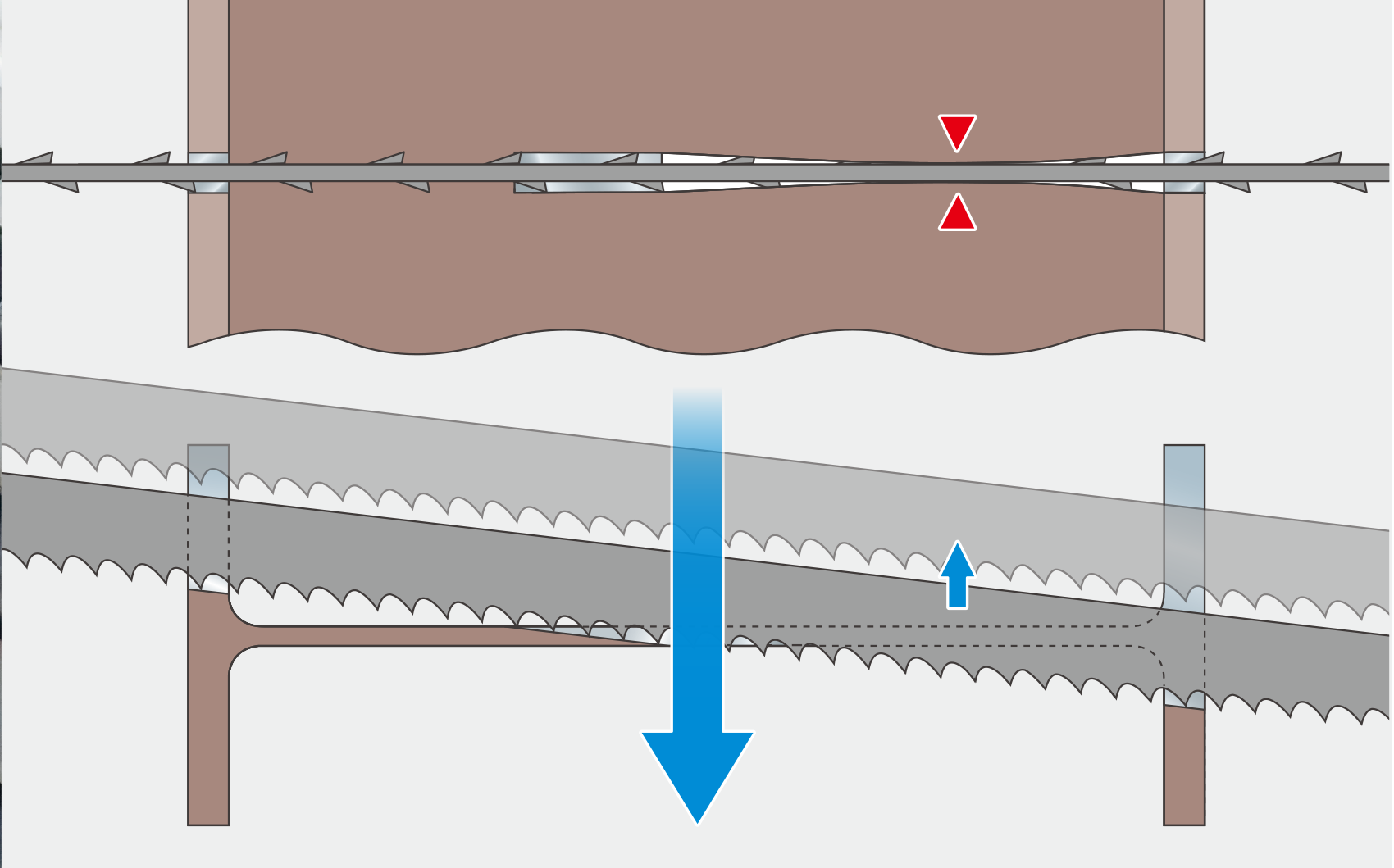

PINCHING ESCAPE
Saw blade pinching due to beam inner stress is eliminated by DAITO’s unique proactive step-feed method.
LOWER CUTTING NOISE
The vibration damper roller reduces cutting noise; increases blade life.
SAW FRAME LINEAR GUIDES
The saw frame goes up and down on linear guides reducing friction for more smooth and accurate blade feeding.
VERTICAL VISE
The vertical vise is positioned automatically at the center of the workpiece to dampen the vibrations that can cause blade damage and failures.

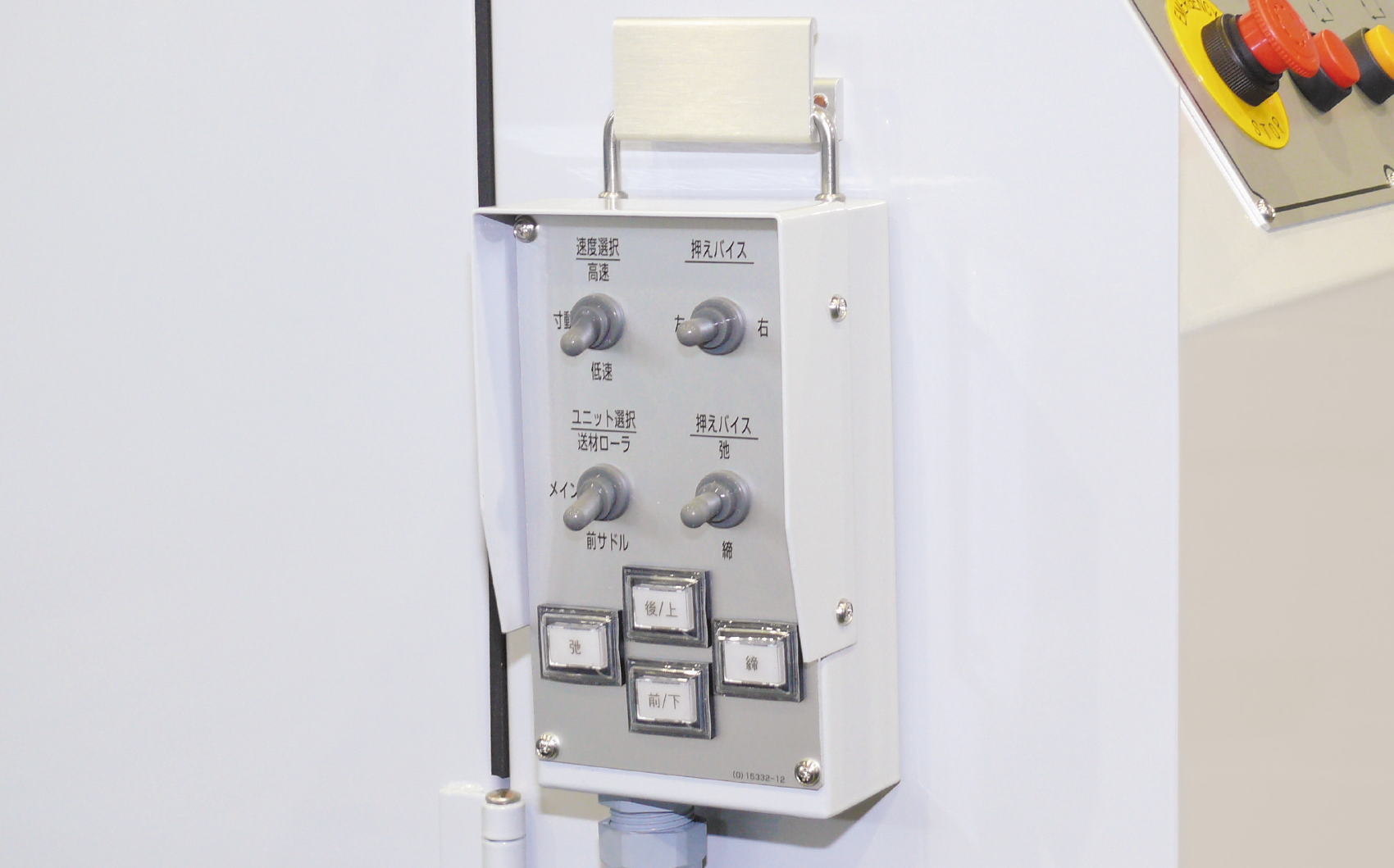

REMOTE CONTROL BOX
The commonly used switches such as frame/vise are also on the remote control box.
CLEAR SHADOW LINE
The cutting position is projected by the strong LED; the shadow is even clear in a bright working environment to make work positioning easy.
CARBIDE BACK-UP ROLLER
The carbide back-up roller placed between bearings which are isolated from cutting fluid assures long life of the equipment.
CHIP CONVEYOR
The chain-driven rakes remove saw chips smoothly separating coolant.
Roller tables are to be placed on the infeed and outfeed side of the machine. The tables come with 3,5,7,10 or 20 rollers per table depending on jobs.
The powered roller is linked with a roller table; lifts up workpiece by hydraulics and feed it to the machine driven by the motor.
The workpiece is pushed against the vertical rollers for precise alignment.
The traverse carts lift up and traverse workpiece to the conveyor lines.
The rollers of the fall-free table are placed close together with 125mm pitch and turned on/off freely to carry even small cut pieces.
The laser beam helps to position workpiece when a markings are made on the left flange.
From each machine to total automation, contact us freely.
